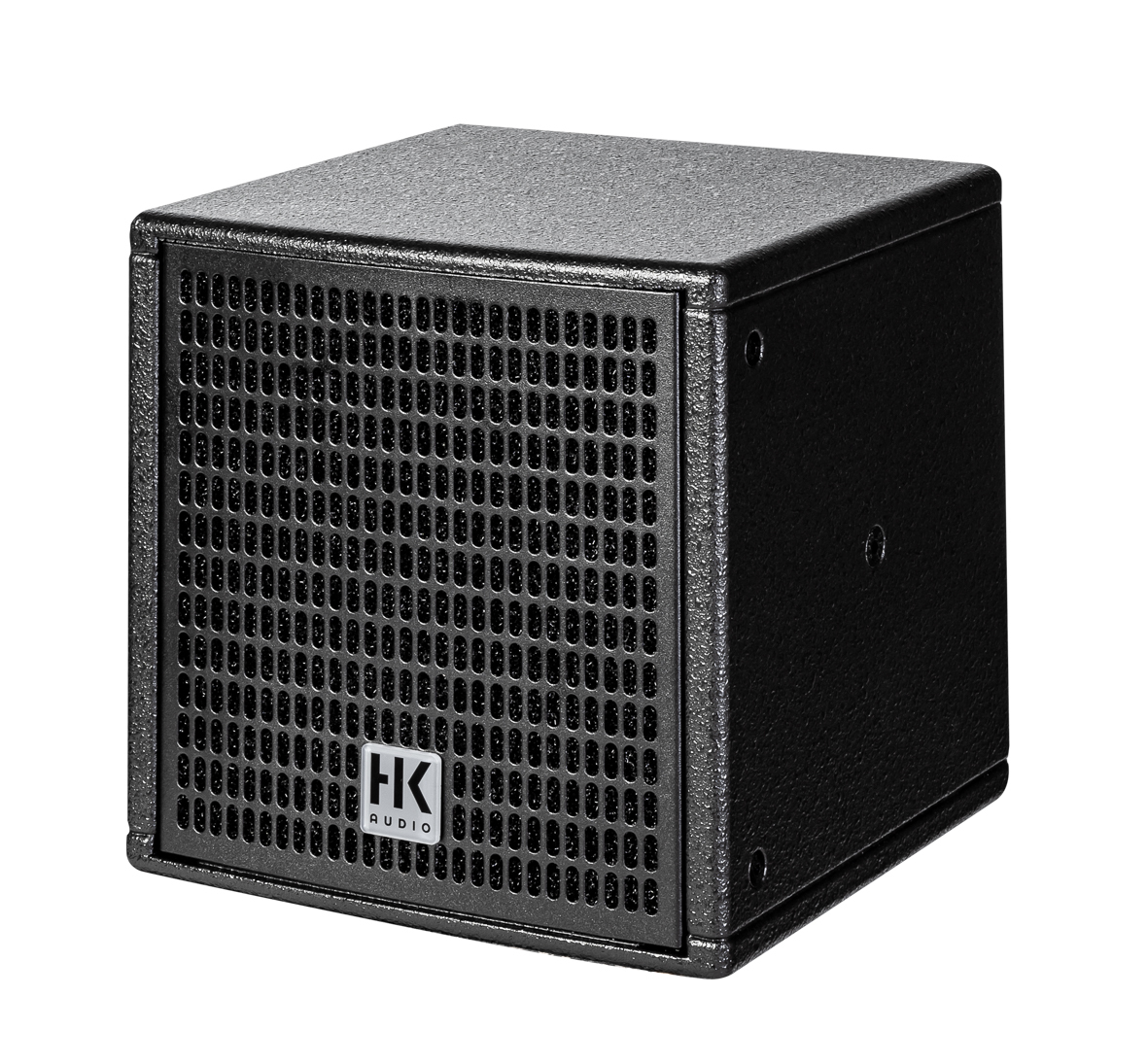

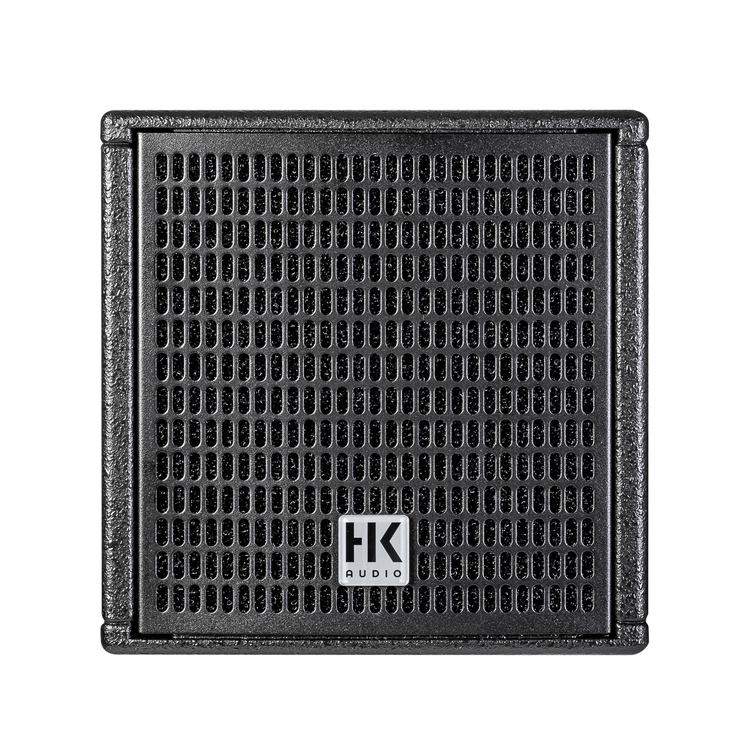

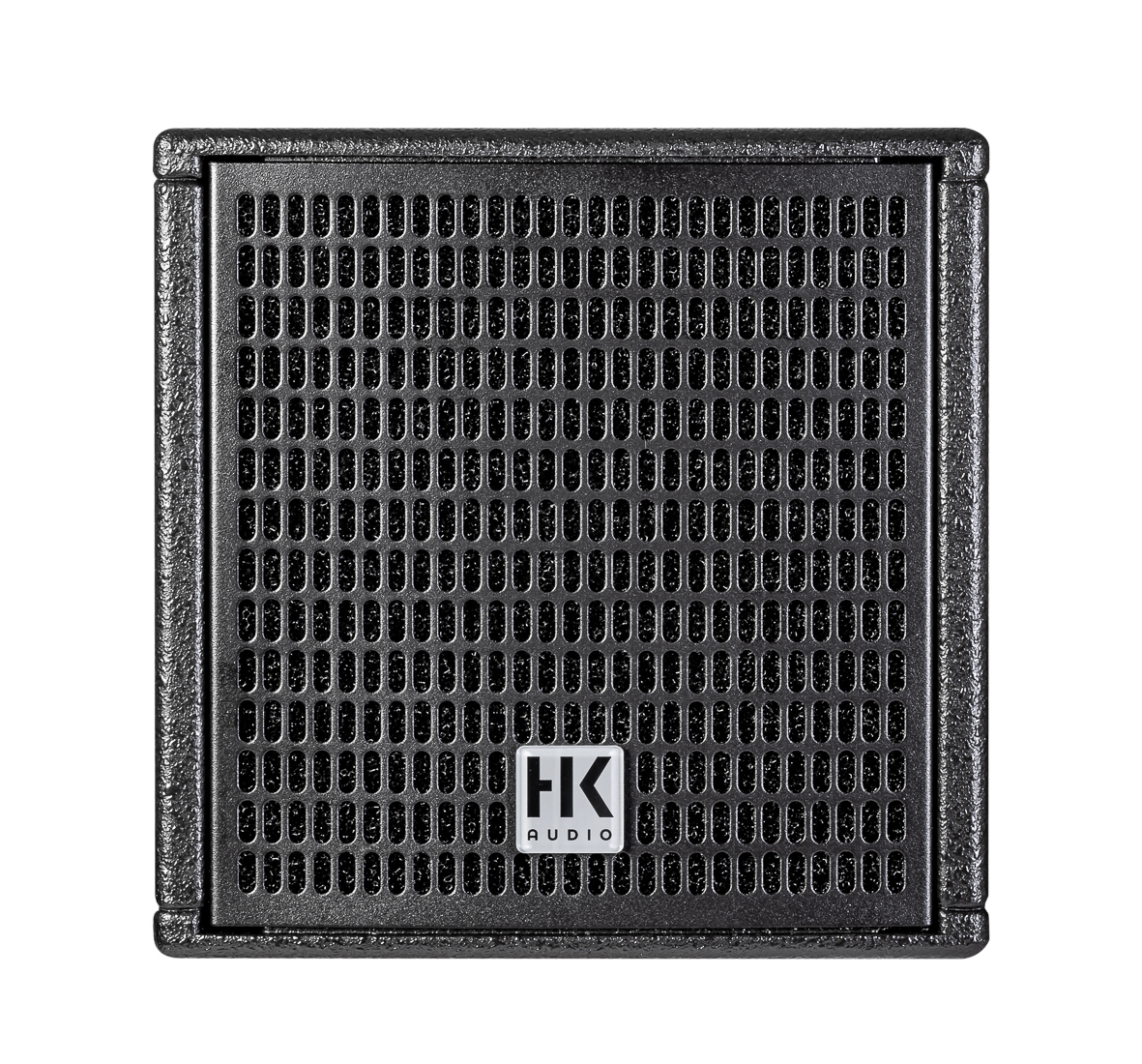

FINEO FO 5



The ultra-compact, cube-shaped FO 5 features an innovative coaxial 5"/1" transducer with 110° dispersion, in which the silk dome tweeter uses the shape of the woofer cone as a wave guide.



This makes it particularly suitable for close listening distances and ideal for use as a delay speaker in larger rooms for front sound reinforcement or nearfill at the edge of the stage in fixed installations. In combination with the S112 (F) subwoofer, it grows to full size and offers a powerful full-range sound reinforcement solution that will please even the most discerning ears. In addition to nearfield monitoring at lecterns, other areas of application include high-quality hospitality or background sound reinforcement as well as unobtrusive placement in exhibitions, for elaborate immersive audio applications with many sources or simply for use by Power Hi-Fi enthusiasts.



With its extensive range of accessories, the FO 5 can be quickly and safely installated in all standard applications, but can also handle more specialised requirements with ease.



  • Ultra-compact coaxial speaker
  • Support for Lab.Gruppen IPX and LEA Professional with DSP Presets and other DSP platforms with Filter Sheets in open table format
  • All-new passive crossover with self-healing HF protection circuit for maximum operational reliability in fixed installations
  • Swivel and tilt wall bracket allows space-saving and visually appealing installation with precise alignment options at the same time
  • Matching U-brackets allow for flown installation on ceilings, with the brackets allowing for adjustable alignment to different audience areas
  • Special accessories for mounting on rotatable 360° bracket and for internal ceiling or wall mounting with L-brackets

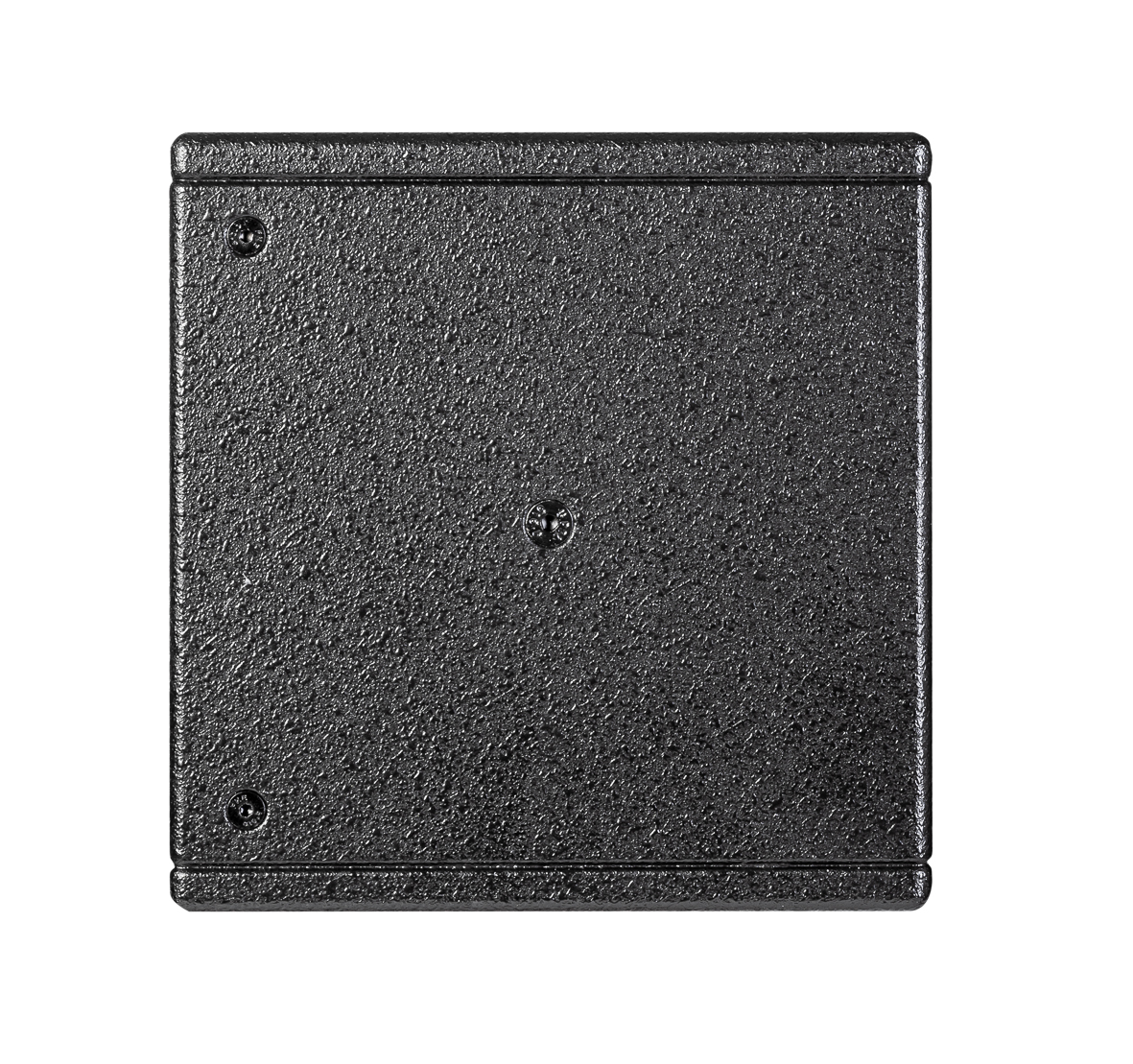

  • Hole pattern on the back in the internationally standardised VESA format for attaching additional mounting accessories required for the particular application
  • Extremely solid enclosures using acoustically beneficial MDF and foam-backed grille

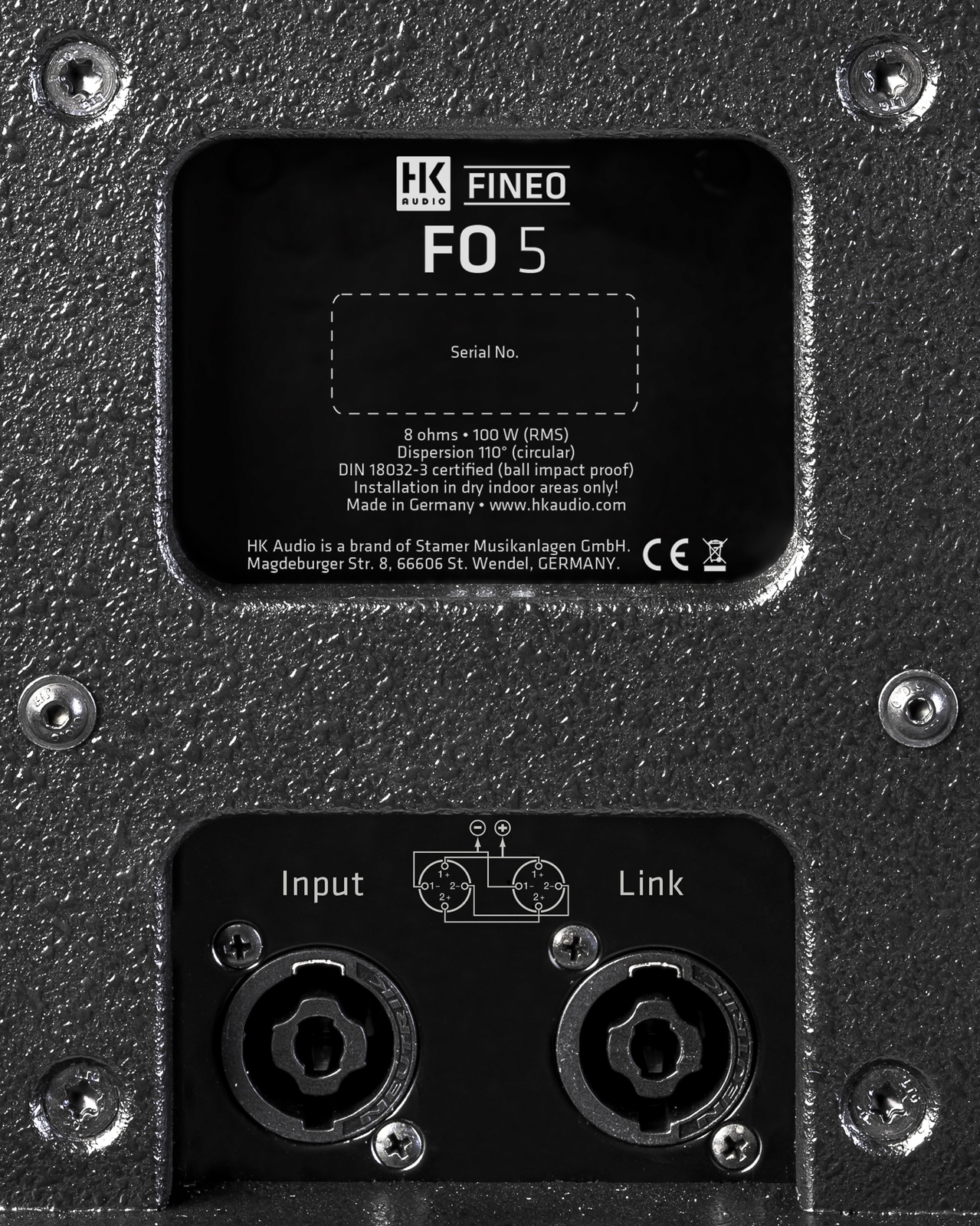

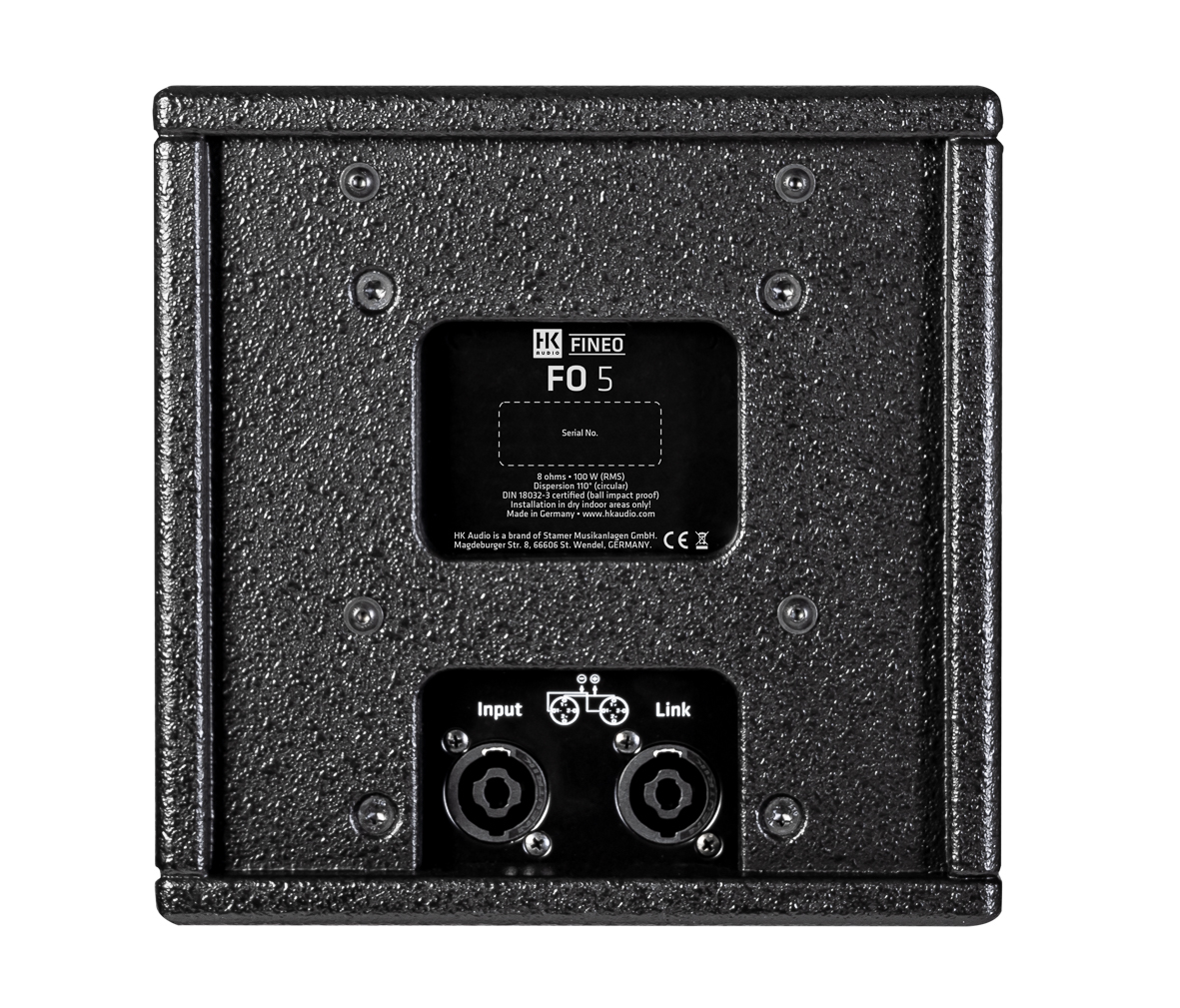

  • Standard design with 2 Neutrik Speakon sockets
  • Simulation data for EASE and EASE FOCUS for predicting sound distribution and speech intelligibility
  • Certified ball-impact resistant in line with DIN 18032-3

FINEO FO 5 U-bracket

FO 5 U-bracket made of high-strength powder-coated steel for fixed installation of an FO 5. Simple installation on the side of the cabinet. Infinitely adjustable tilt. Can be installed on microphone/desk stand via central 10 mm opening. Ball-impact resistance certificate in line with DIN 18032-3.

Swivel and Tilt Mount S (VESA MIS-D)

Swivel and Tilt Mount for mounting a speaker on a wall. Continuous horizontal rotation and vertical tilt in 10° increments from 0° to 30°. Mounted using the VESA hole pattern (MIS-D) on the back of the speaker.

FINEO FO 5 adapter plate VESA MIS-D

Adapter plate made of high-strength powder-coated steel with row of punched holes. Required accessory for using the BM-360 with FO 5.

BM-360 (360° bracket)

360° bracket for installing a FO 5 speaker on a wall, ceiling or surface. Tilt angle continuously adjustable on all axes. Requires the FO 5 adapter plate to connect to the cabinet.

FINEO FO 5 L-bracket

Bracket for installing a FO 5 speaker in a wall or ceiling. The maximum installation depth is 75 mm. Supplied in pairs for installing one FO 5 speaker.

SKU 1007997
Barcode # 4039373024999
Brand HK AUDIO
