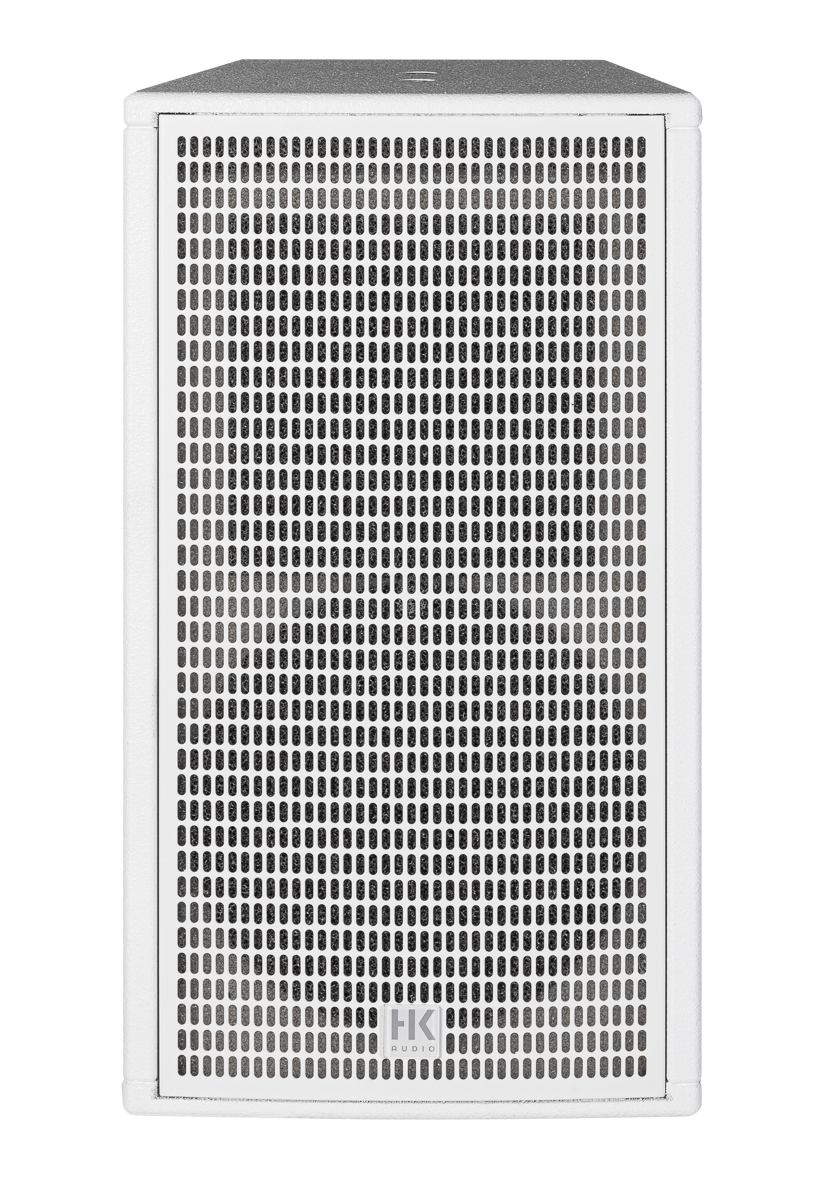

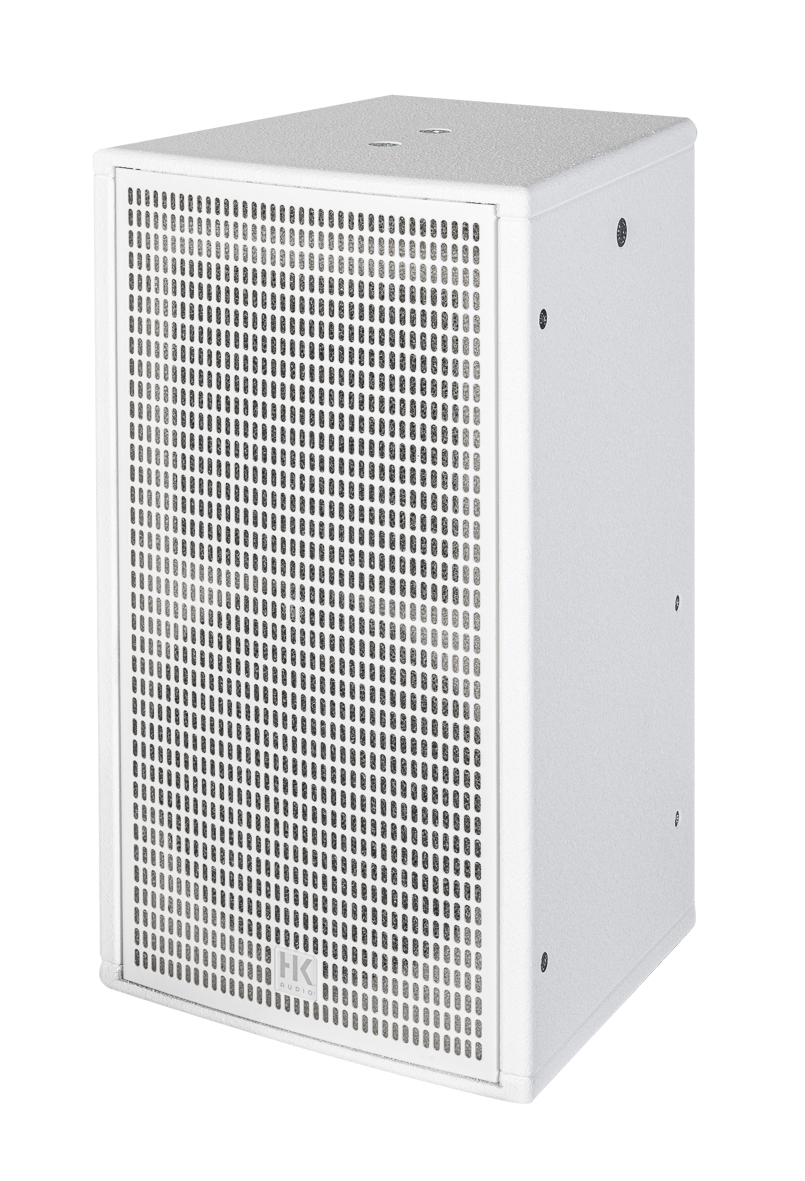

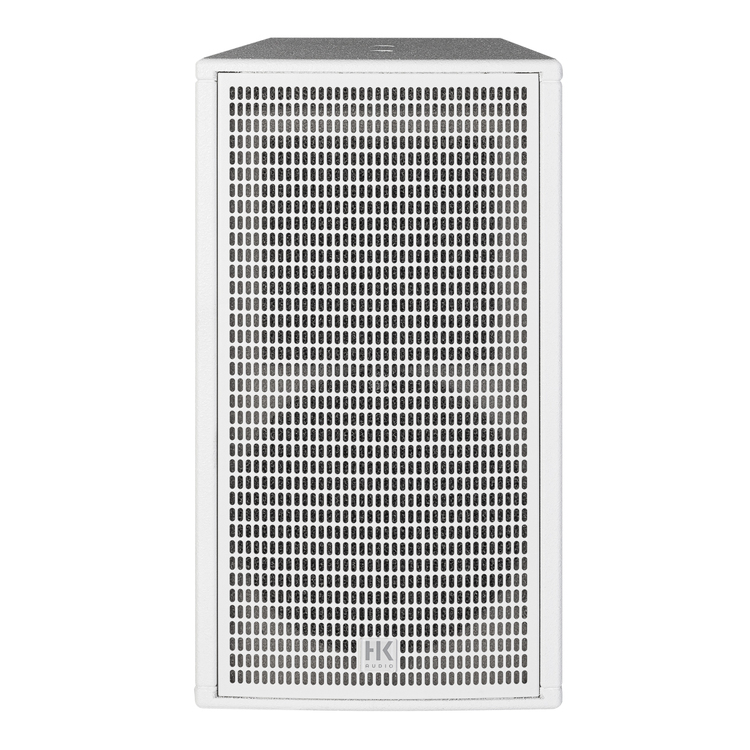

FINEO FO 8

The compact FINEO FO 8 is designed as a passive 2-way system and has a modern, ultra-slim and space-saving trapezoidal cabinet. With its 8" cone speaker with 1.75" voice coil, the FO 8 provides a solid foundation for speech or near-field sound reinforcement and balanced mids in combination with the S112, S118 or S218 subwoofers.

The BEM-optimized constant directivity horn with the powerful 1" compression driver, which is well-known from the CONTOUR X series, specially developed for the rough and tumble of touring, has a dispersion angle of 80° x 60° and thus delivers a large sound area without causing excessive acoustic excitation on the walls or ceilings.

The horn can be rotated, meaning that the FO 8 can be used upright, on its side or with altered horizontal and vertical dispersion. The compact speaker can therefore always be positioned optimally, even in small or architecturally complex rooms.

• Compact, passive 2-way speaker
• Support for Lab.Gruppen IPX and LEA Professional with DSP Presets and other DSP platforms with Filter Sheets in open table format
• Rotatable, BEM-optimized constant-directivity HF of the latest generation from the CONTOUR X family
• All-new passive crossovers with self-healing HF protection circuit for maximum operational reliability in fixed installations
• Swivel and tilt wall bracket allows space-saving and visually appealing installation with precise alignment options at the same time
• Matching U-brackets allow for flown installation on ceilings, with the brackets allowing for precise angle adjustments

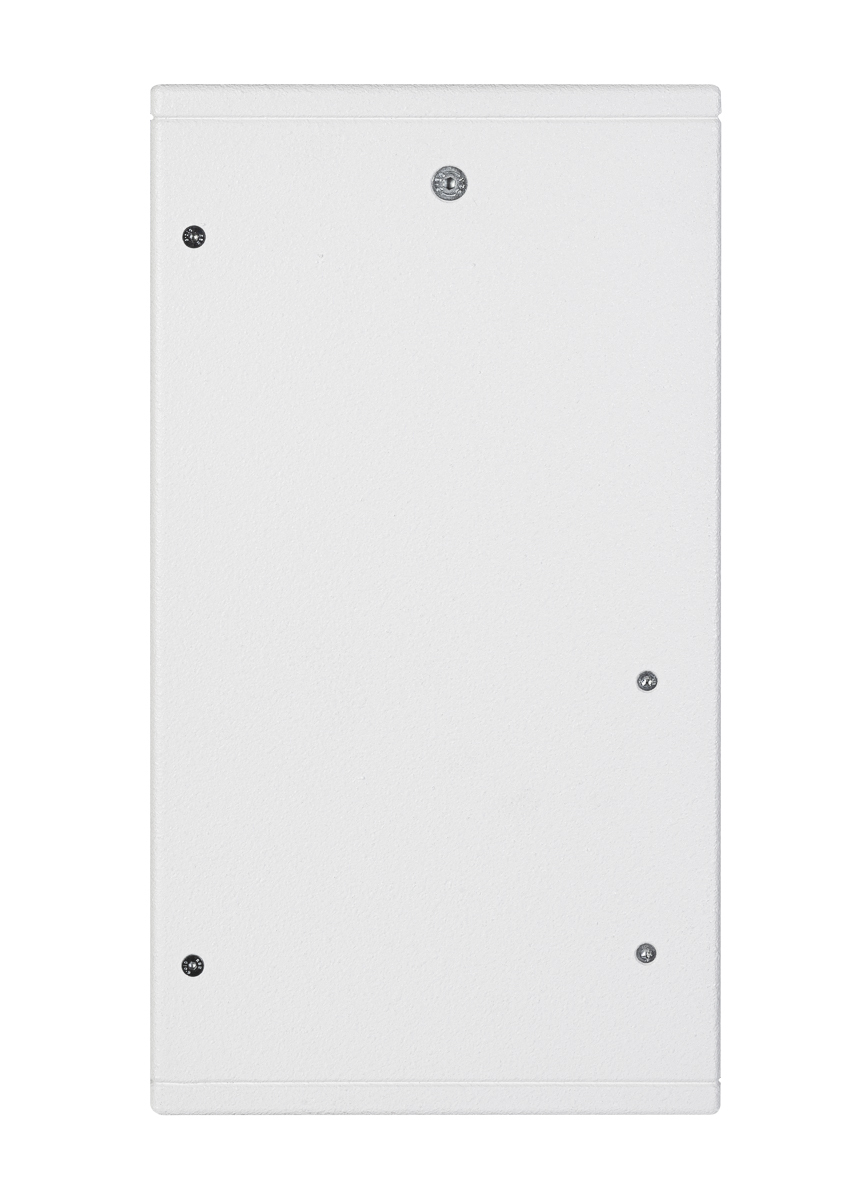

• Hole pattern on the back in the internationally standardised VESA format for attaching additional mounting accessories required for the particular application
• An external 35 mm stand flange can be attached so that the new FINEO speakers can be fitted to existing installations with appropriate wall brackets
• Extremely solid enclosures in acoustically beneficial MDF and foam-backed grille with additional steel reinforcements

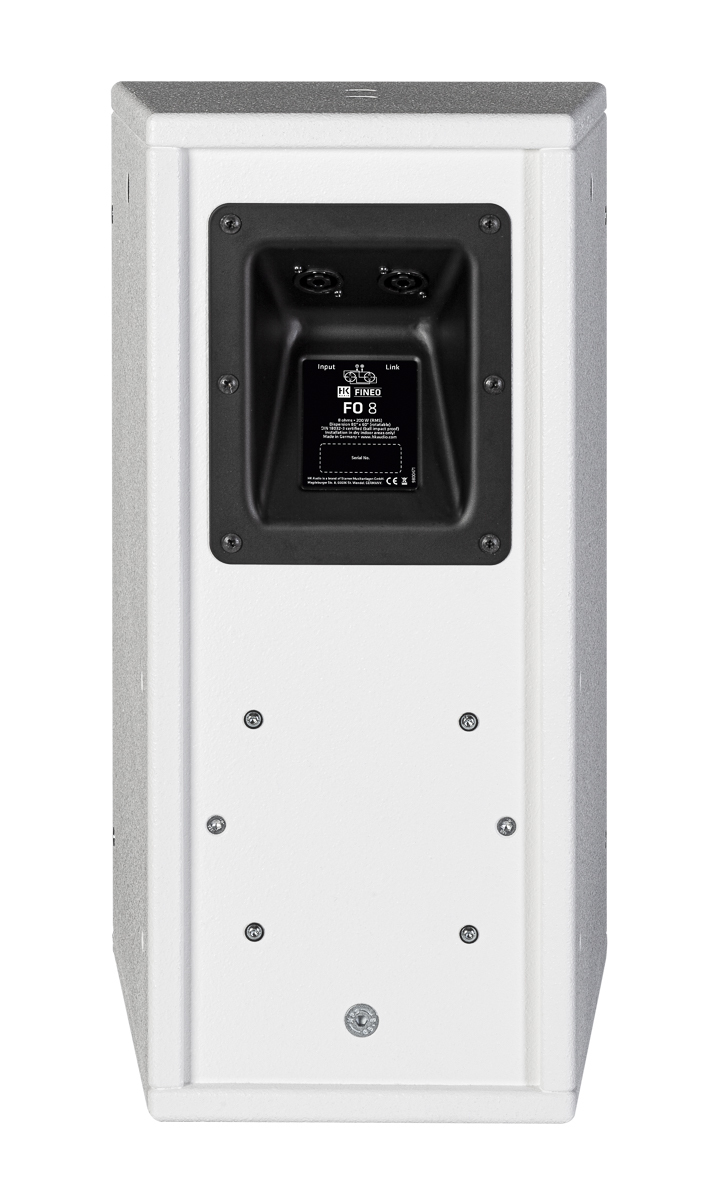

• Standard design with 2 lockable Neutrik Speakon sockets
• Simulation data for EASE and EASE FOCUS for predicting sound distribution and speech intelligibility as planning support for larger projects
• Certified ball-impact resistant in line with DIN 18032-3

FINEO FO 8 U-bracket

FO 8 U-bracket made of high-strength powder-coated steel for fixed installation of an FO 8. Simple installation on the top and bottom of the cabinet by hanging it into hook openings. Adjustable tilt in 15° increments. Ball-impact resistance certificate in line with DIN 18032-3.

Swivel and tilt wall mount S (VESA MIS-D)

Swivel and tilt bracket for mounting a speaker on a wall. Continuous horizontal rotation and vertical tilt in 10° increments from 0° to 30°. Mounted using the VESA hole pattern (MIS-D) on the back of the speaker.

SF-35

External 35 mm flange for use on a standard 35 mm speaker stand. Simple screw connection to the underside of the speaker. Easy-to-use locking screw to lock the speaker to the stand without tools.

BWH-1

Wall bracket with adjustable 30 cm arm and backstop for mounting a speaker on a wall. This allows for flexible speaker placement on the wall bracket. The arm can be rotated up to 120° and tilted 45°.

AP-8

Attachment points with unscrewing protection for mounting on a ceiling or crossbeam. Simple attachment to the M8 mounting threads. Available in sets of 3 or 4 AP-8s as well as individually.
