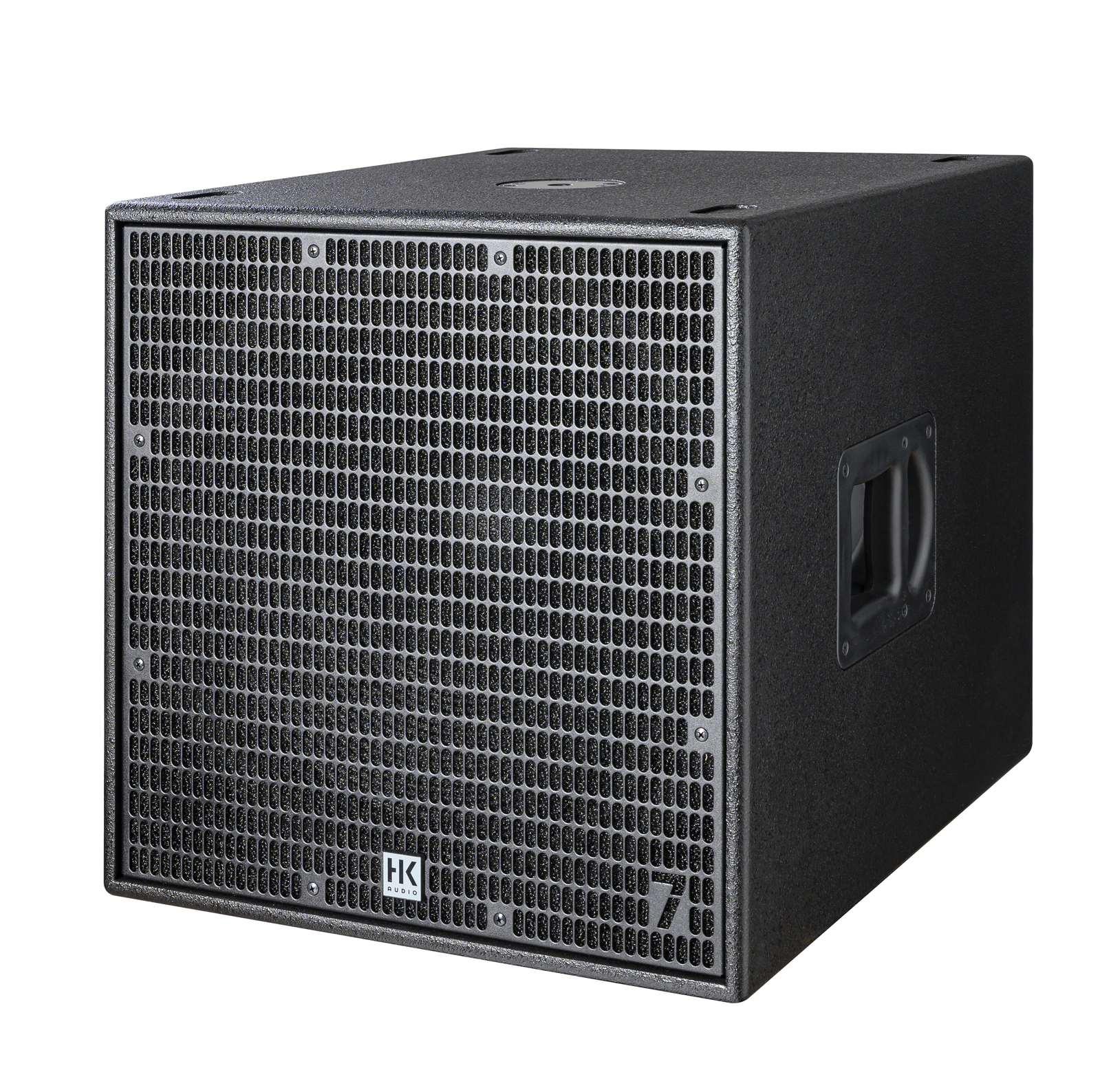

The LINEAR 7 118 Sub A is a network-compatible, active bass reflex subwoofer. Its bass reflex construction allows for compact dimensions. Thanks to a weight of just 42 kilograms, it is extremely easy to transport. A powerful, precise bass reproduction makes this active bass the ideal complement to the LINEAR 7 T mid/high units. What’s more, it meets all the requirements for quickly and easily implementing effective cardioid setups, both mechanically and with the available filter sets. Thanks to its stereo preamplifier, it is also ideal for use in 2.1 systems. Four DSP presets can be selected directly on the subwoofer without a PC connected. In addition to three standards (Front, Cardioid 1:1 and Cardioid 2:1), a fourth user-designed preset can also be accessed.

• 2000 W Class D

• Active subwoofer with network control

• 1× 18-inch bass speaker with 4" voice coil

• Internal presets for fast implementation of cardioid setups

• DSP platform with fully parametric 10-band EQ, delay and limiting for uncompromised individual adjustment

• Modern network technology for precise control of all DSP features

• Additional DSP-Out with the full range of features of the DSP that lets you operate a non-network-compatible loudspeaker

• Direct access to easily selectable presets on the speaker for Cardioid 1:1 and Cardioid 2:1

• High-resolution AD/DA converters with 96 kHz and low latency of less than 2.6ms

• M20 tripod thread for mounting mid/high units via tripod

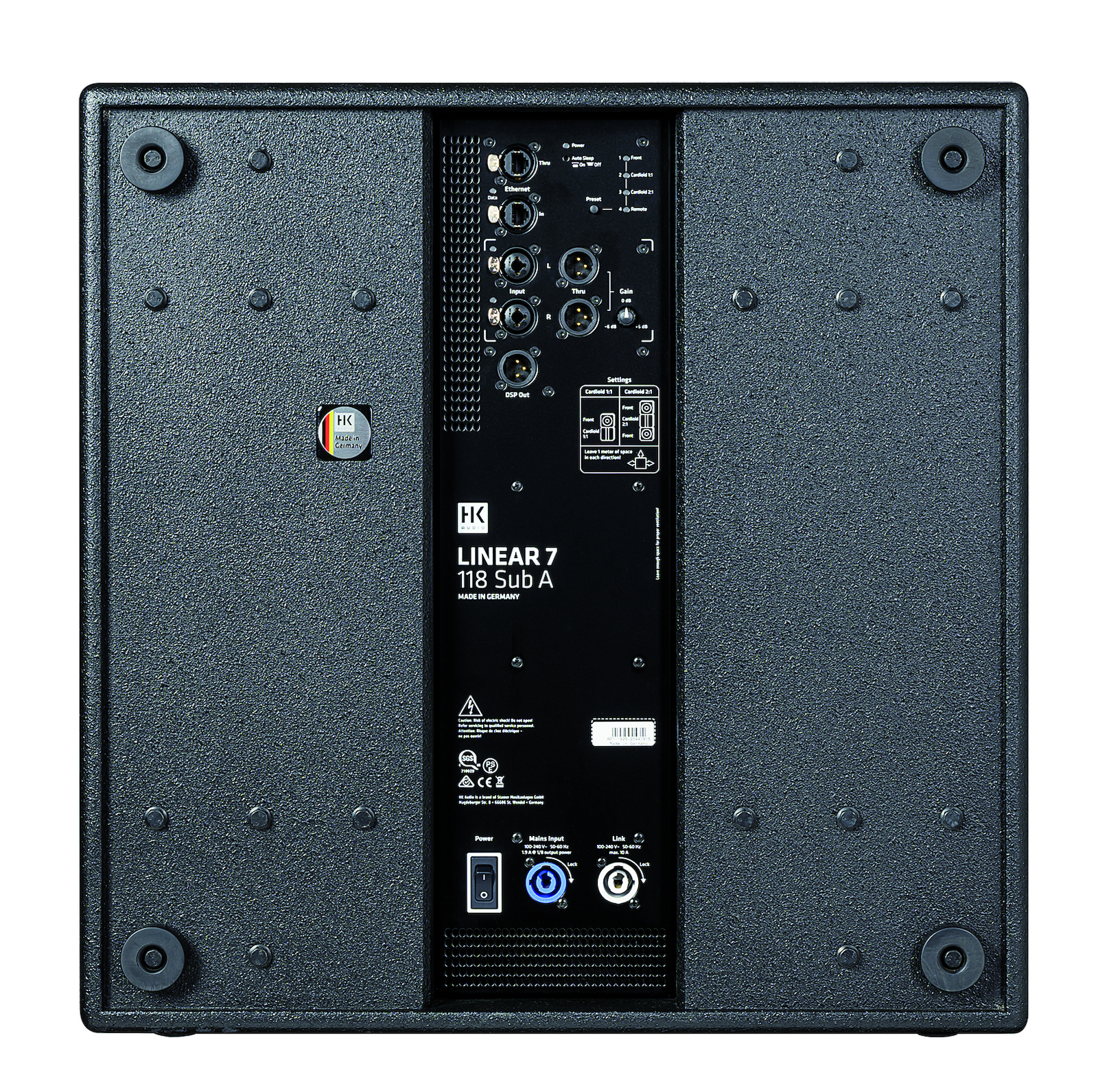

• Professional Powercon and Ethercon connections

• Sturdy housing made of birch multiplex

SKU 1007754
Brand HK AUDIO
Shipping Weight 47.0000kg
Shipping Width 0.615m
Shipping Height 0.625m
Shipping Length 0.745m
Shipping Cubic 0.286359375m3
