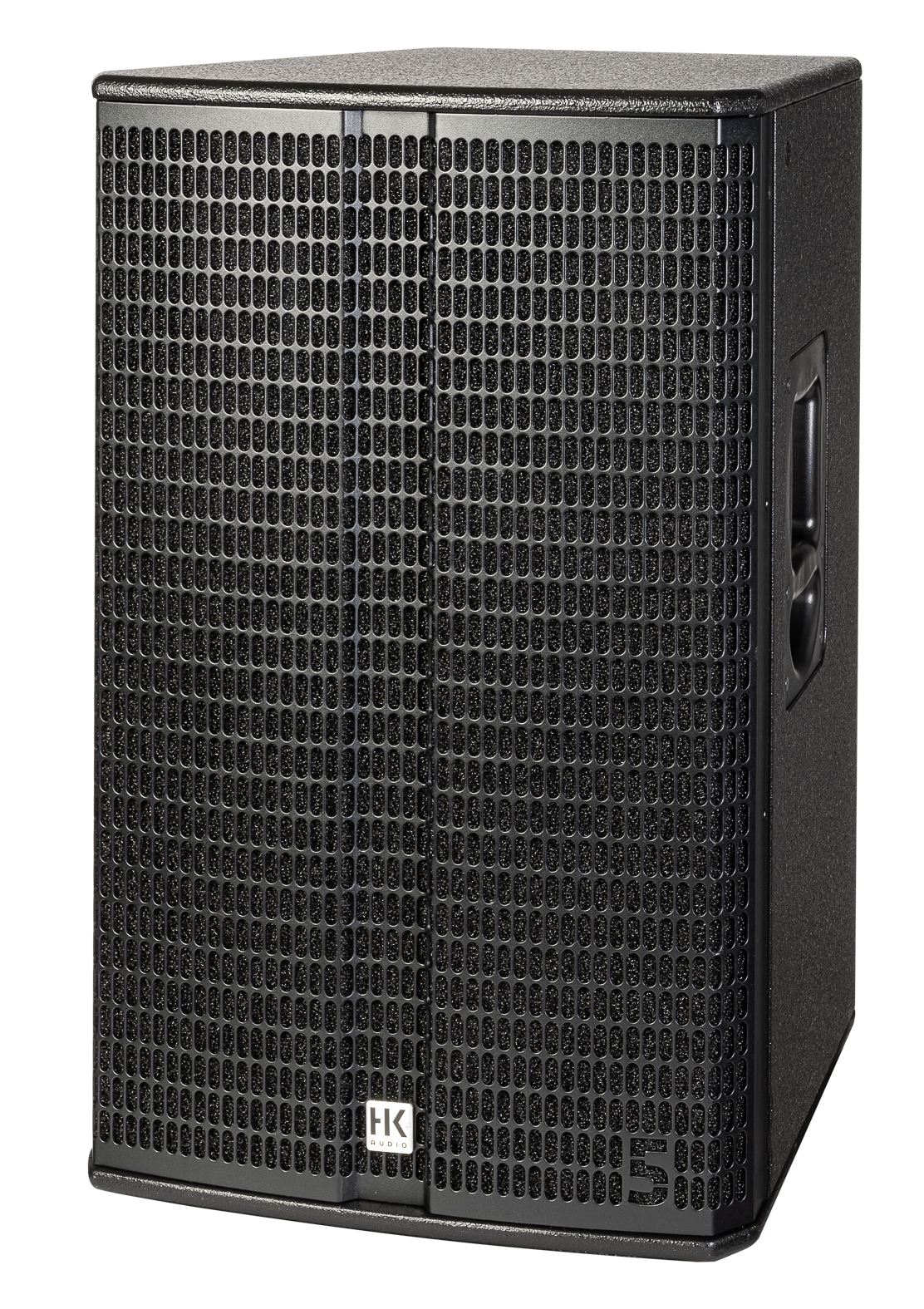

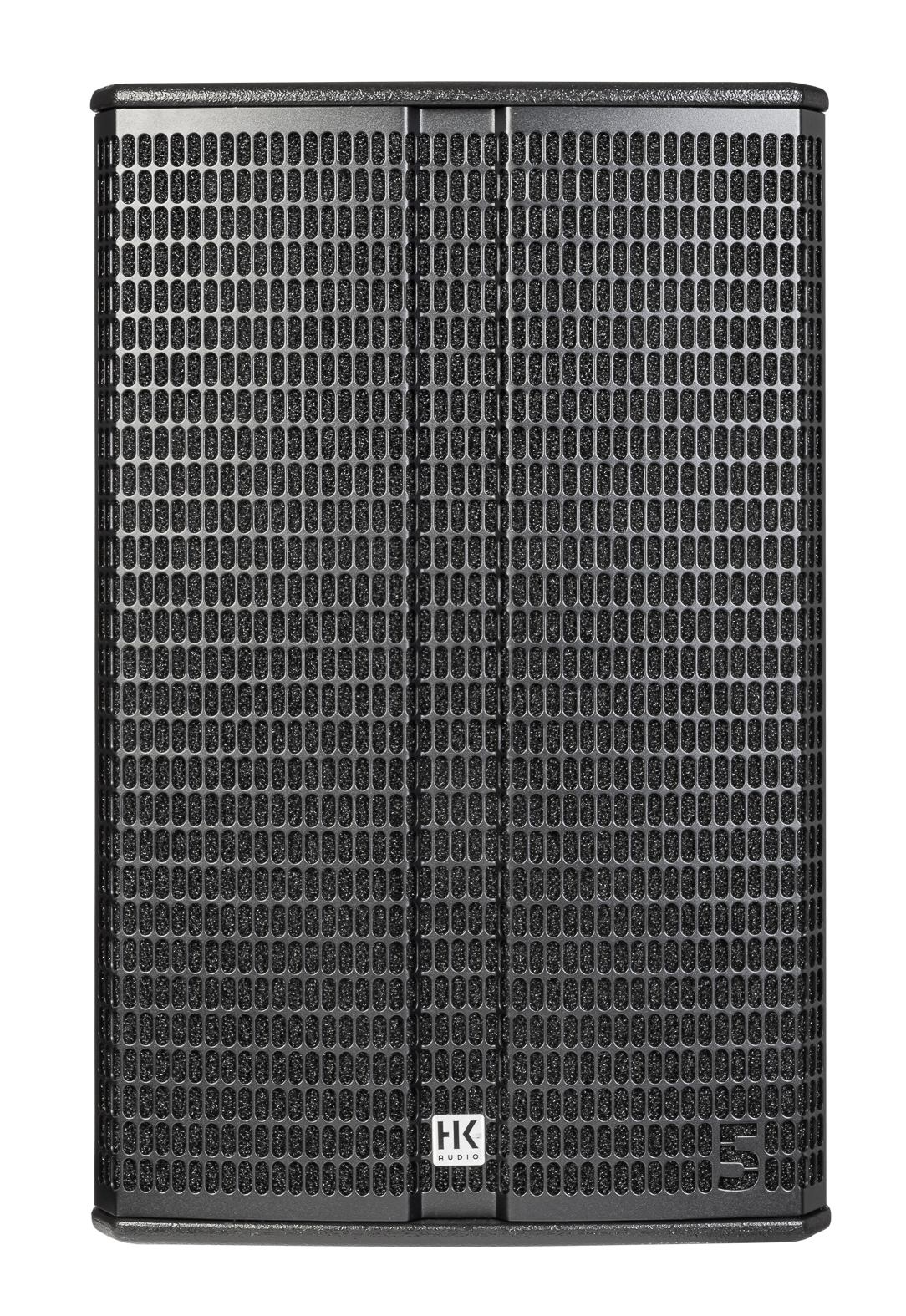

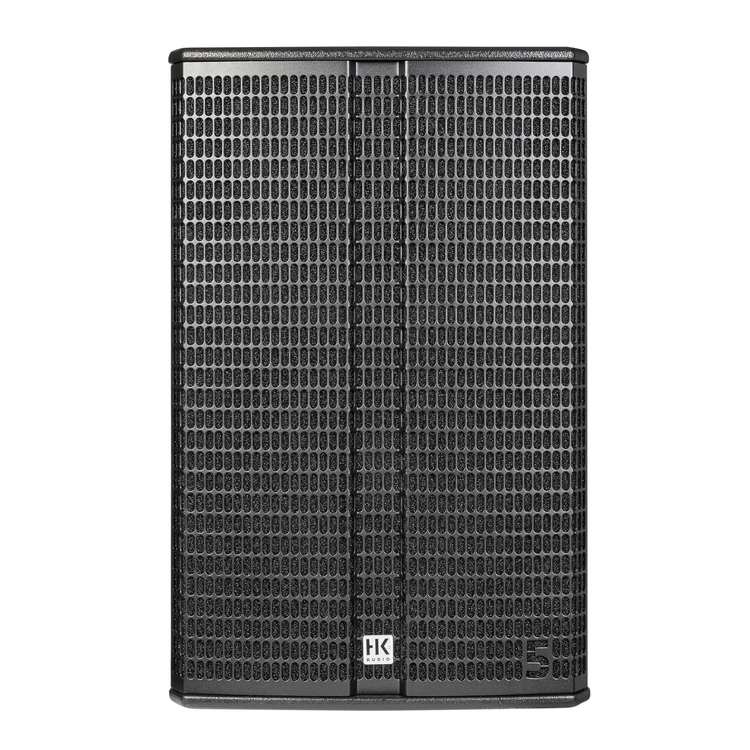

Full-range mid/high unit with the most powerful bass response of the series Part number: 1008076 The LINEAR 5 MK II 115 FA full-range mid/high unit is equipped with a 15" woofer and a tweeter with a 1.7" voice coil in a rotatable horn that makes it easier to form speaker clusters thanks to the horn dispersion of 60° x 40°. The powerful bass reproduction, as well as the transparent and assertive sound, make the LINEAR 5 MK II 115 FA the most powerful mid/high unit in the series. Its longer horn allows for longer throw distances. The remote-controllable high-performance DSP with integrated, directly selectable presets o ers a DSP Out that can route the processed signal from the speaker to a non-networked speaker. The sturdy birch multiplex hybrid enclosure and the versatile accessories for mounting and rigging make the LINEAR 5 MK II 115 FA a strong partner for bands, DJs and sound technicians, either as a powerful system mid/high unit with the LINEAR 5 MK II subwoofers or as a full-range solution with the necessary extra low end.

  • Full-range mid/high unit with more power in the bass range

  • 1200 W peak power bi-amped Class-D power amplifier

  • Rotatable horn with 60° x 40° dispersion pattern

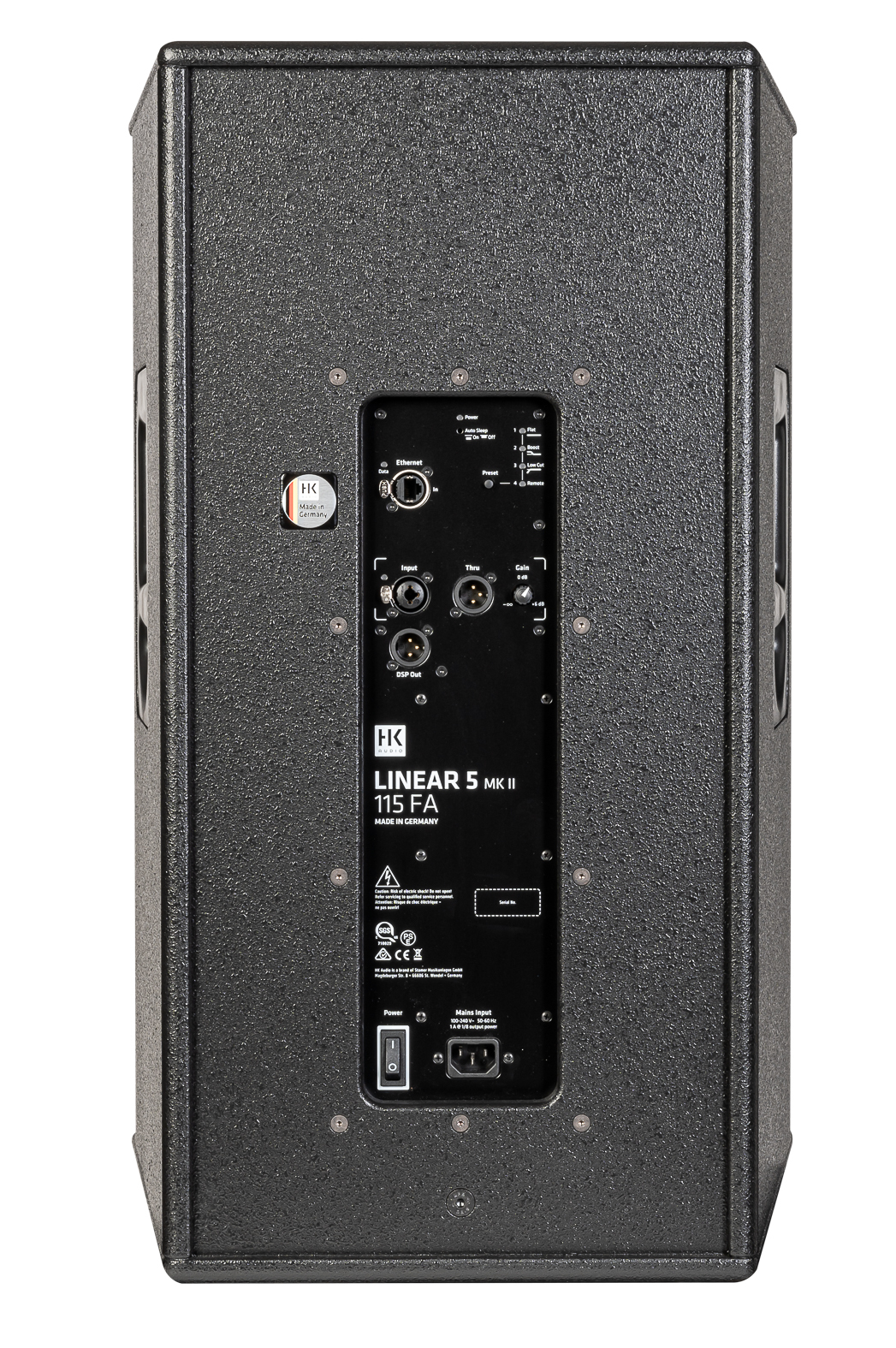

  • Lockable, balanced XLR/TRS Combo input, balanced XLR output for analogue looping to an additional speaker

  • Remote-controllable high-performance DSP with integrated directly selectable presets for the most common applications: Flat, Boost, Low Cut, Remote

  • Extensive DSP tools: fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute

  • Professional, lockable EtherCon connector for connection to a Mac or PC to control the system

  • DSP Out: balanced XLR output that transmits the processed signal from the speaker to a non-network-compatible speaker. The audio signal applied here can be extensively modified using the DSP CONTROL software

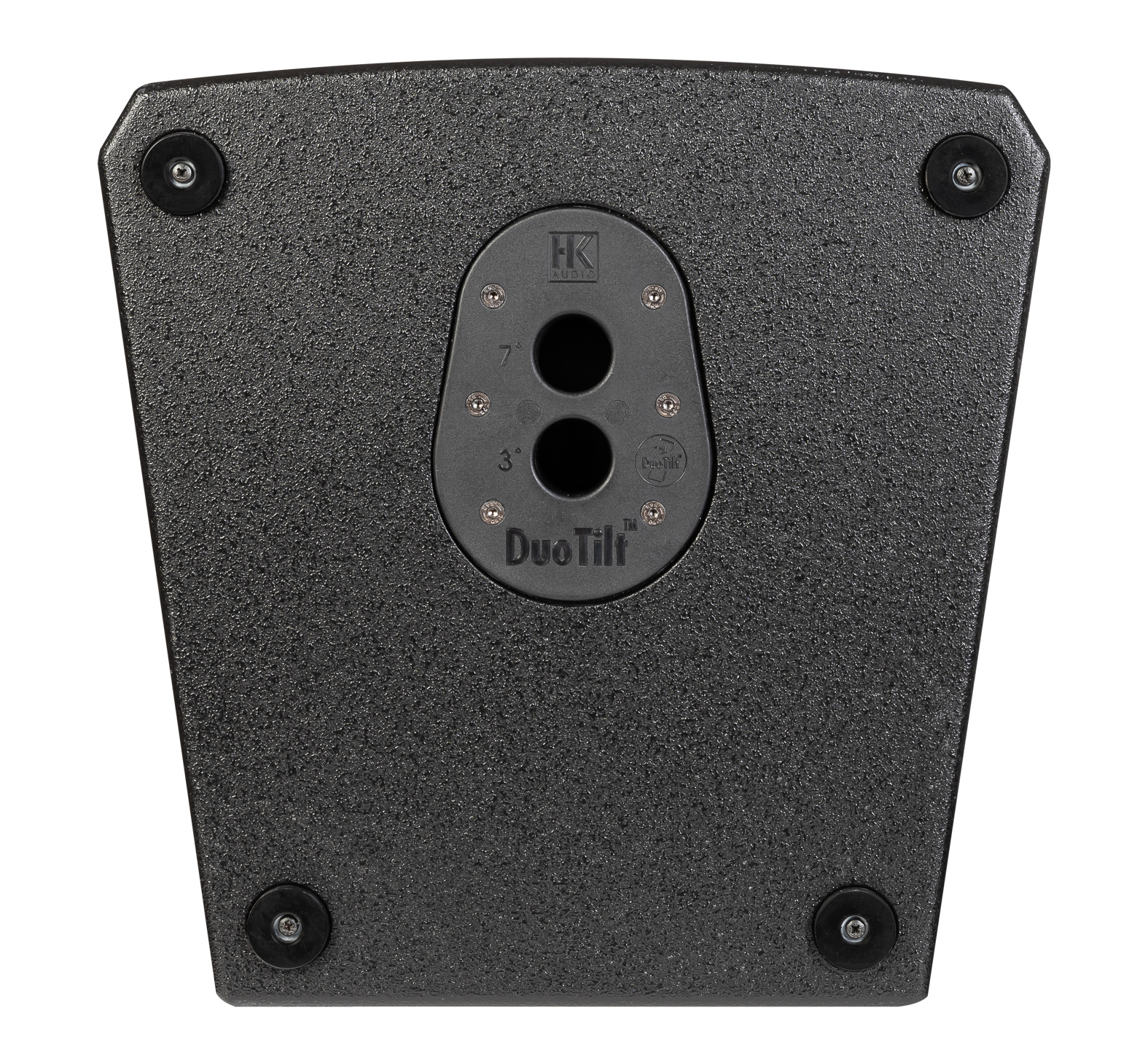

  • HK AUDIO DuoTilt with 3° or 7° inclination

  • Three reinforced M8 (AP-8) mounting points, two HK Audio MultiGrip handles for TB-45N or TB-45NQ tilt brackets

  • Lockable V-Lock mains cable

  • Made in Germany

SKU 1008127
Brand HK AUDIO
Shipping Weight 36.0000kg
Shipping Width 0.526m
Shipping Height 0.770m
Shipping Length 0.526m
Shipping Cubic 0.213040520m3
